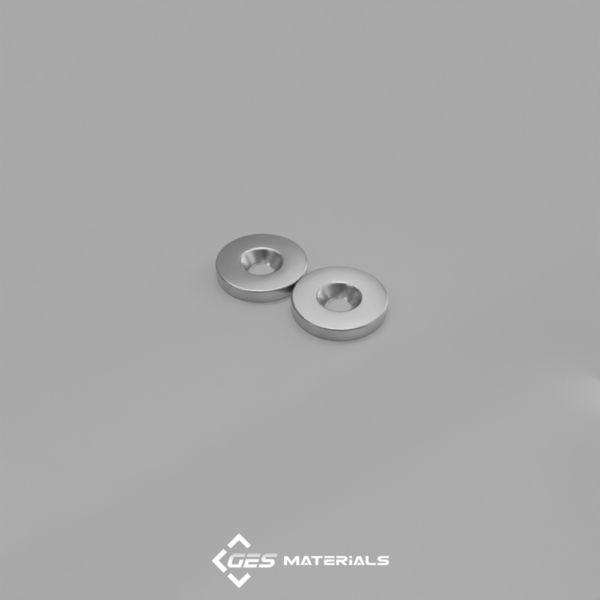

3/4 x 1/8 Inch Countersunk Ring Magnet (1 Pair) | RC22CS-P N42 Magnets

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/4″ od x 1/8″ thick with countersunk hole for #8 screw
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.424 oz. (12.02 g) (per pair)
  • Pull Force, Case 1: 8.68 lbs
  • Pull Force, Case 2: 29.25 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

Strong countersunk ring magnets specifically sized for #8 flat-head screws.

These rings are sold in pairs. One will have the north pole on the side with the larger end of the hole, while the other will have the south pole on that side, allowing them to attract each other when installed.

These countersunk rings can be used for various applications, including door closures and tool hangers.
