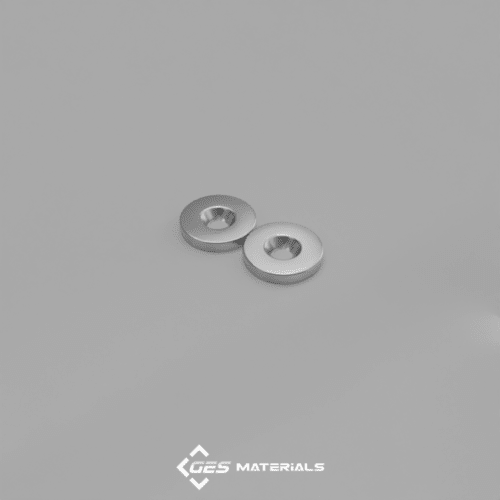

3/4 x 1/8 Inch Countersunk Ring Magnet | RC22CS-S N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/4″ od x 1/8″ thick with countersunk hole for #8 screw
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.212 oz. (6.01 g)
  • Pull Force, Case 1: 8.68 lbs
  • Pull Force, Case 2: 29.25 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These strong countersunk ring magnets are precisely sized for #8 flat-head screws, with the south pole located on the side featuring the large hole where the screw head sits.

These versatile magnets are perfect for a wide range of applications, including door closures, tool hangers, cabinetry, displays, and other secure mounting solutions.
