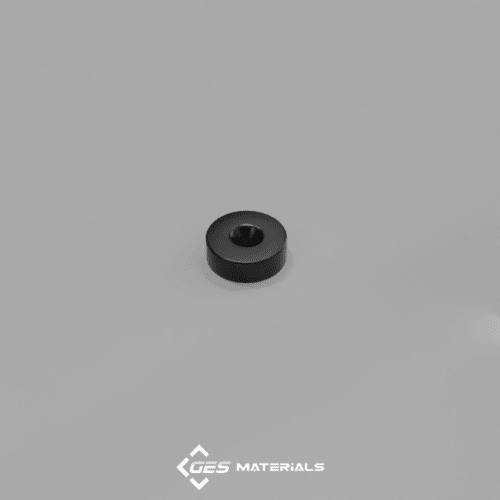

3/4 x 1/4 Inch Plastic Coated Countersunk Ring Magnet (#4 screw) | RC24DCSPC-BLK N42 Magnets

Additional information

Description:

Dimensions: 3/4″ od x 1/4″ thick w/ holes to accept #4 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni Black Plastic
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.28 oz. (7.941 g)
Pull Force, Case 1: 6.61 lbs
Pull Force, Case 2: 12.75 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RC24DCSPC-BLK brings the functionality of our popular plastic-coated countersunk ring magnets into a more compact form. It offers all the versatility of a standard countersunk ring, wrapped in a durable black plastic coating for added protection and a sleek look.

With a double countersunk design, this magnet is fully reversible, making it ideal for a wide range of uses—perfect for attaching objects to painted or delicate surfaces, as well as for crafts, signage, displays, and more.
