3/4 x 1/4 Inch Ring Magnet | RC44 N52 Magnets

Categories , ,

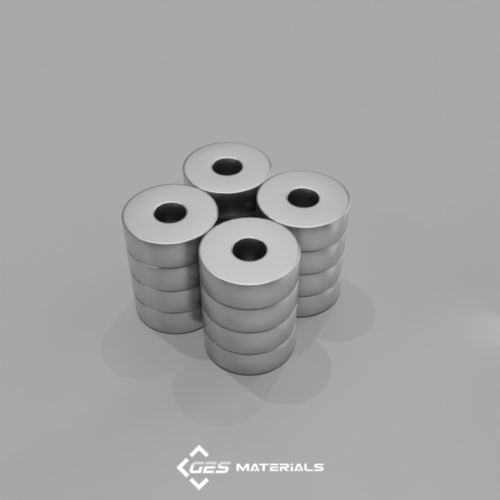

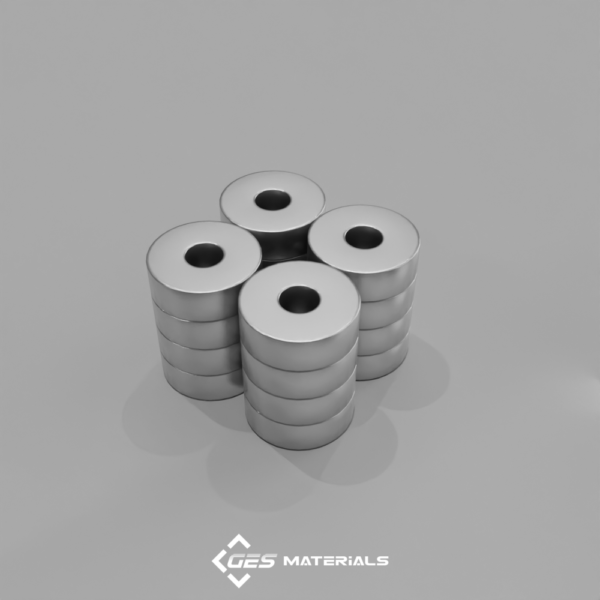

3/4 x 1/4 Inch Ring Magnet | RC44 N52 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/4″ od x 1/4″ id x 1/4″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.426 oz. (12.1 g)
  • Pull Force, Case 1: 21.81 lbs
  • Pull Force, Case 2: 40.66 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

The RC44-N52 is a powerful and versatile ring magnet. Whether you’re organizing screws in your toolbox or displaying items on a magnetic board, it’s up to the task.
