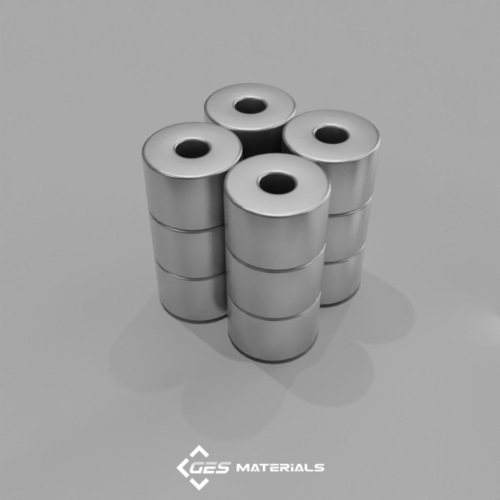

3/4 x 1/2 Inch Ring Magnet | RC48 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

3/4 x 1/2 Inch Ring Magnet | RC48 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 3/4″ od x 1/4″ id x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.851 oz. (24.1 g)
Pull Force, Case 1: 25.88 lbs
Pull Force, Case 2: 33.04 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

Compact yet powerful, the RC62 features a 3/8″ center hole that adds exceptional versatility. Suitable for countless practical applications.
