3/4 x 3/4 Inch Ring Magnet | RC4C-N52 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

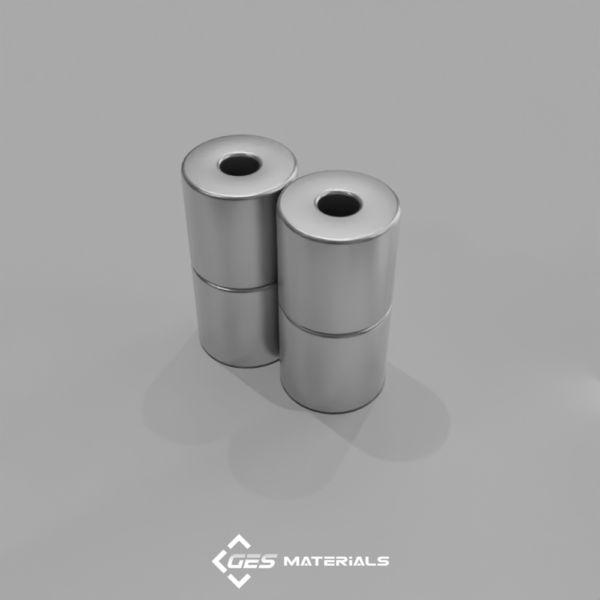

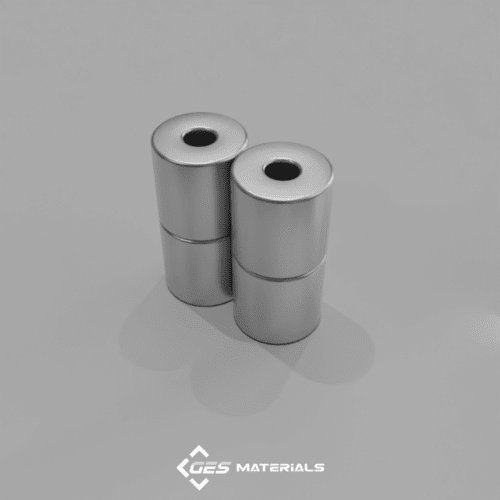

3/4 x 3/4 Inch Ring Magnet | RC4C-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 3/4″ od x 1/4″ id x 3/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.28 oz. (36.2 g)
Pull Force, Case 1: 37.09 lbs
Pull Force, Case 2: 41.03 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

The RC4C-N52 is an incredibly powerful ring magnet—ideal for science experiments, reed switch activation, and a variety of other applications.
