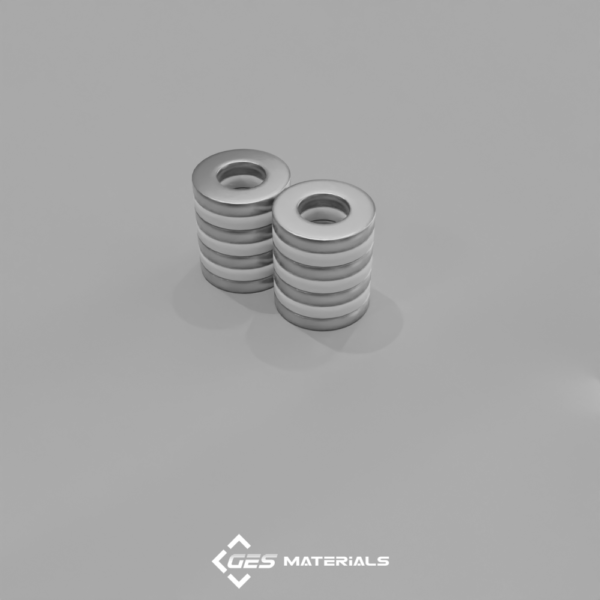

3/4 x 1/8 Inch Ring Magnet | RC62 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/4 x 1/8 Inch Ring Magnet | RC62 N42 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 3/4″ od x 3/8″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.18 oz. (5.1 g)
  • Pull Force, Case 1: 8.51 lbs
  • Pull Force, Case 2: 28.12 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The RC62 is a mighty little magnet—surprisingly strong for its size and even more versatile thanks to its 3/8″ center hole. The possibilities are endless!
