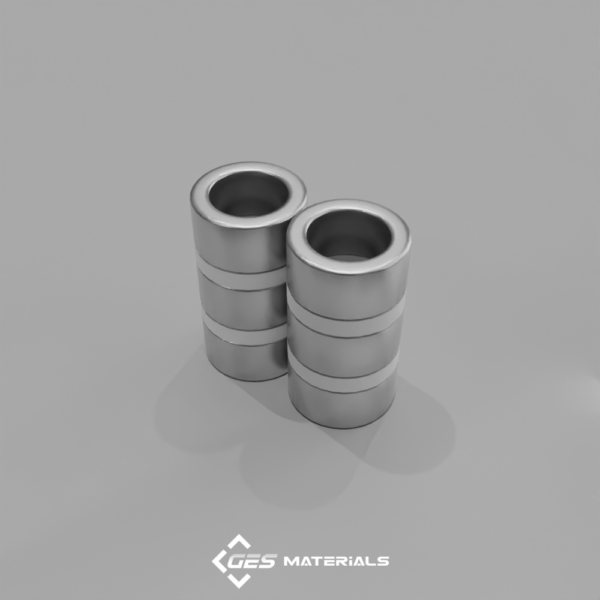

3/4 x 3/8 Inch Ring Magnet | RC86 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/4 x 3/8 Inch Ring Magnet | RC86 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 3/4″ od x 1/2″ id x 3/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.399 oz. (11.3 g)
Pull Force, Case 1: 16.30 lbs
Pull Force, Case 2: 21.12 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These thin-walled ring magnets are excellent for science experiments, magnetic bearings, and various other applications.
