7/8 x 1/8 Inch Countersunk Ring Magnet | RE22CS-N N42 Magnets

Additional information

Description:

Dimensions: 7/8″ od x 1/8″ thick with countersunk hole for #8 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.319 oz. (9.05 g)
Pull Force, Case 1: 10.23 lbs
Pull Force, Case 2: 39.28 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

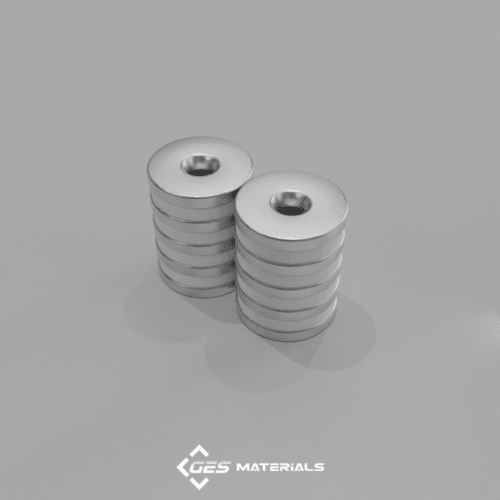

These 7/8″ diameter x 1/8″ thick countersunk ring magnets are designed to accommodate a #8 countersunk screw. The RE22CS-N is magnetized with the north pole on the countersink side.

These versatile magnets are well-suited for a variety of applications, including door closures, tool hangers, and other mounting or fastening solutions where a strong, flush-fit magnet is needed.
