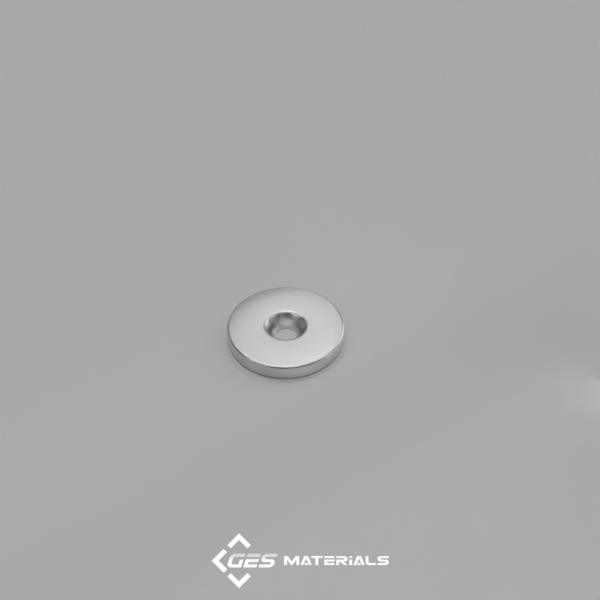

7/8 x 1/8 Inch Countersunk Ring Magnet (#8 screw) | RE22CS-N-N52 Magnets

Categories , , ,
7/8 x 1/8 Inch Countersunk Ring Magnet (#8 screw) | RE22CS-N-N52 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 7/8″ od x 1/8″ thick with countersunk hole for #8 screw
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.319 oz. (9.05 g)
  • Pull Force, Case 1: 12.28 lbs
  • Pull Force, Case 2: 47.14 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

These 7/8″ diameter x 1/8″ thick countersunk ring magnets are designed to fit a #8 countersunk screw. The RE22CS-N is magnetized with the north pole on the countersunk side.

These versatile magnets are ideal for a variety of applications, including door closures, tool holders, and mounting solutions.
