1 x 3/16 Inch Countersunk Ring Magnet (1 Pair) | RX033CS-P N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 3/16 Inch Countersunk Ring Magnet (1 Pair) | RX033CS-P N42 Magnets

Additional information

Description:

Dimensions: 1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.590 oz. (16.7 g)
Pull Force, Case 1: 20.51 lbs
Pull Force, Case 2: 50.37 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

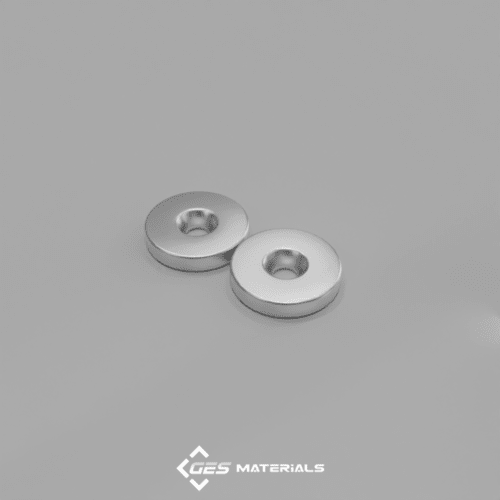

These are 1″ diameter x 3/16″ thick countersunk ring magnets, precisely sized for use with a #10 countersunk screw. Sold by the pair under part number RX033CS-P, each set includes one magnet with the north pole on the countersink side and one with the south pole on the countersink side. This pairing allows them to attract each other perfectly when mounted face-to-face.

These versatile magnets are ideal for a wide range of applications, including door closures, tool hangers, cabinetry, signage, and fixtures. Strong, reliable, and easy to install.
