1 x 3/16 Inch Countersunk Ring Magnet (1 Pair) | RX033CS-P-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 3/16 Inch Countersunk Ring Magnet (1 Pair) | RX033CS-P-N52 Magnets

Additional information

Description:

Dimensions: 1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.590 oz. (16.7 g)
Pull Force, Case 1: 24.61 lbs
Pull Force, Case 2: 60.44 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

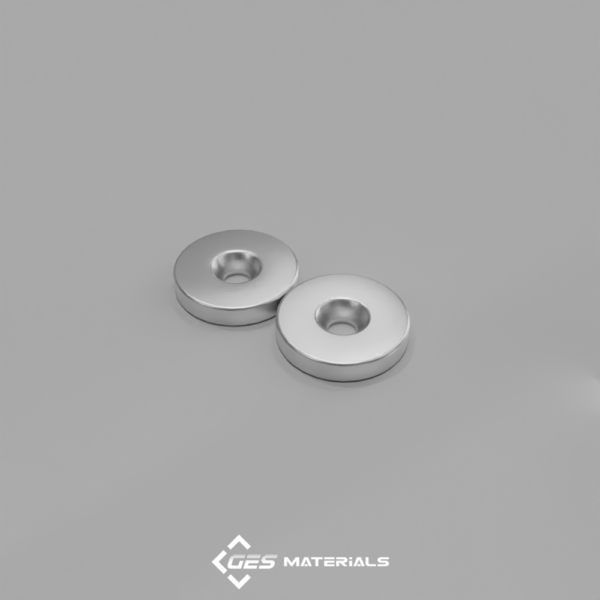

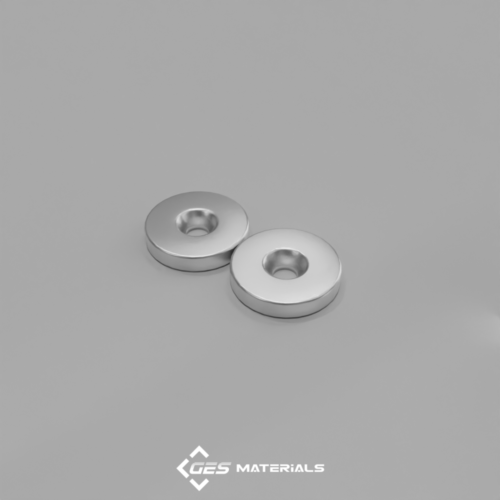

These are 1″ diameter x 3/16″ thick countersunk ring magnets, designed to fit a #10 countersunk screw. Sold as a pair under part number RX033CS-P-N52, each set includes one magnet with the north pole on the countersink side and one with the south pole, allowing them to attract each other when mounted face-to-face.

Made from Grade N52 neodymium, these magnets offer exceptional holding strength, making them perfect for a wide range of applications, including door closures, tool hangers, cabinetry, signage, and more. A powerful and reliable solution for demanding installations.
