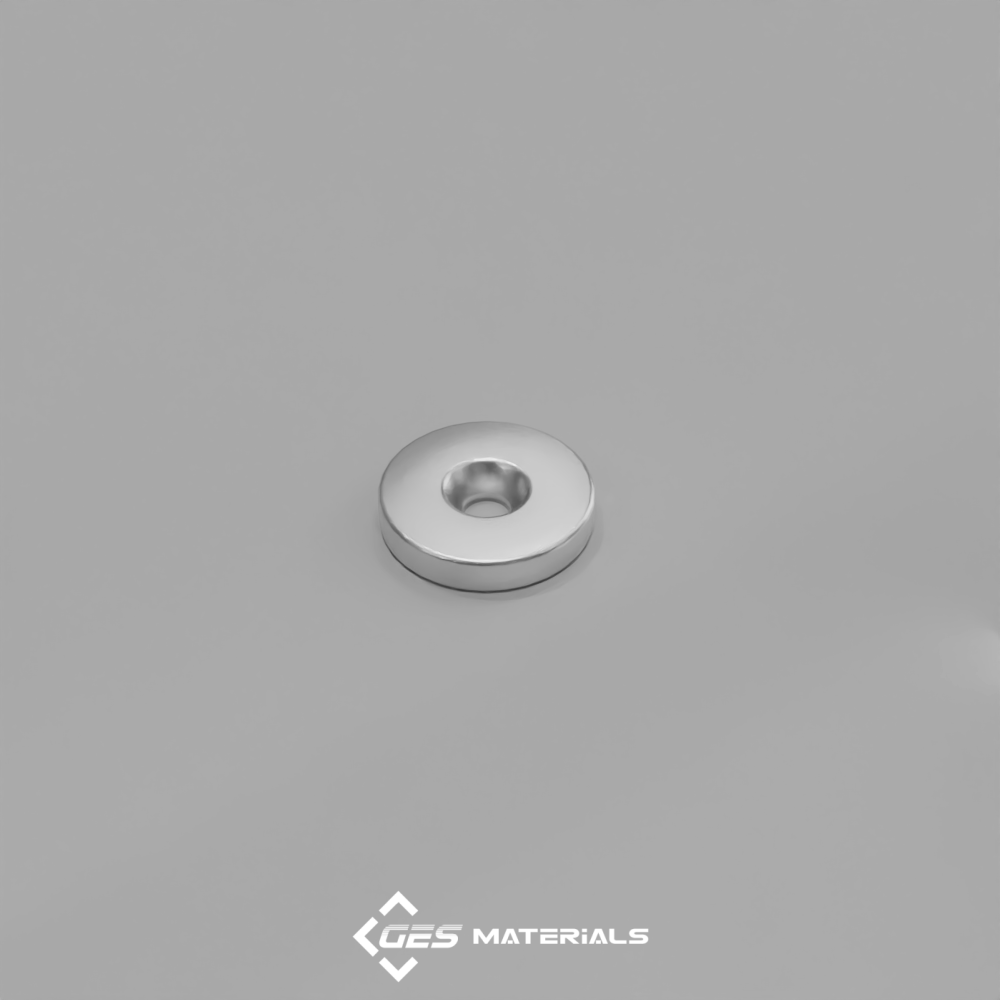

1 x 3/16 Inch Countersunk Ring Magnet (#10 screw) | RX033CS-S-N52 Magnets

Additional information

Description:

Dimensions: 1″ od x 3/16″ thick with countersunk hole for #10 screw
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.590 oz. (16.7 g)
Pull Force, Case 1: 24.61 lbs
Pull Force, Case 2: 60.44 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These are 1″ diameter x 3/16″ thick countersunk ring magnets, precisely sized for use with a #10 countersunk screw. The RX033CS-S-N52 is magnetized with the south pole on the countersink side and made from high-performance Grade N52 neodymium, offering superior holding strength.

These powerful and versatile magnets are perfect for a wide range of applications, including door closures, tool hangers, cabinetry, signage, and more. Their strong grip and easy installation make them a reliable choice for both functional and creative projects.
