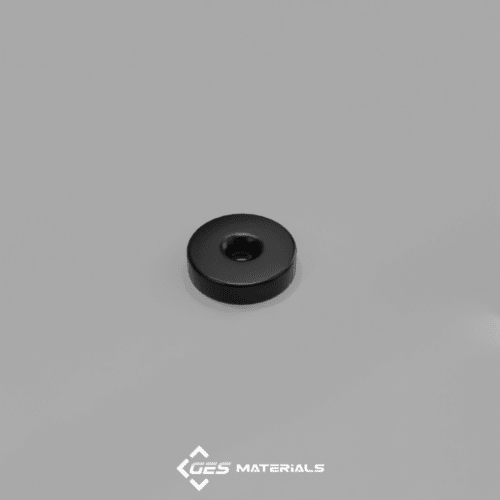

1 x 1/4 Inch Plastic Coated Countersunk Ring Magnet (#6 screw) | RX034DCSPC-BLK N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 1/4 Inch Plastic Coated Countersunk Ring Magnet (#6 screw) | RX034DCSPC-BLK N42 Magnets

Additional information

Description:

Dimensions: 1″ od x 0.194″ id x 0.349″ id x 1/4″ thick w/ hole to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni Black Plastic
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.515 oz. (14.61 g)
Pull Force, Case 1: 9.56 lbs
Pull Force, Case 2: 21.95 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RX034DCSPC combines the best features of our most popular magnets in one compact and durable design. It offers the versatility of a countersunk ring magnet combined with the protection of a rugged plastic coating, making it resistant to chipping and suitable for more demanding environments.

With double countersunk holes, it’s fully reversible, providing flexible mounting options. Ideal for attaching objects to painted surfaces and for use in crafts, signage, displays, and other creative or functional applications. A tough, reliable solution in a small but mighty package!
