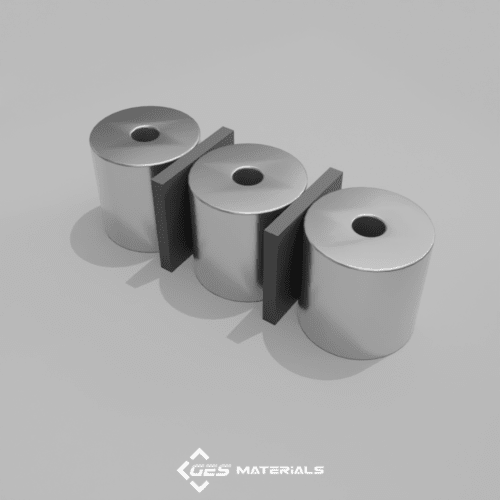

1 x 1 Inch Diametric Ring Magnet | RX04X0DIA-N42 Magnets

Additional information

Description:

Dimensions: 1″ od x 1/4″ id x 1″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 3.19 oz. (90.5 g)
Pull Force, Case 1: 40.44 lbs
Pull Force, Case 2: 49.01 lbs
Surface Field: 6909 Gauss
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These rings are diametrically magnetized, meaning the magnetization is perpendicular to the hole’s axis. The magnetic poles are located on opposite sides of the ring’s circular faces. They are suitable for mounting on shafts to work with sensors or for generating electricity.

This size is also available axially magnetized as part number RX04X0.
