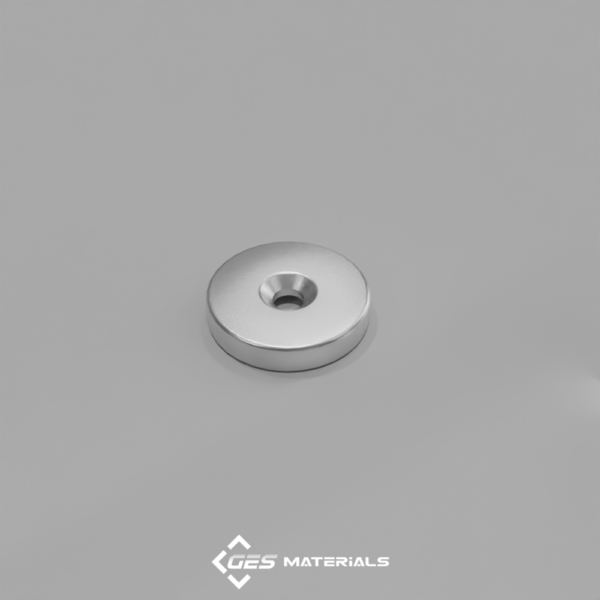

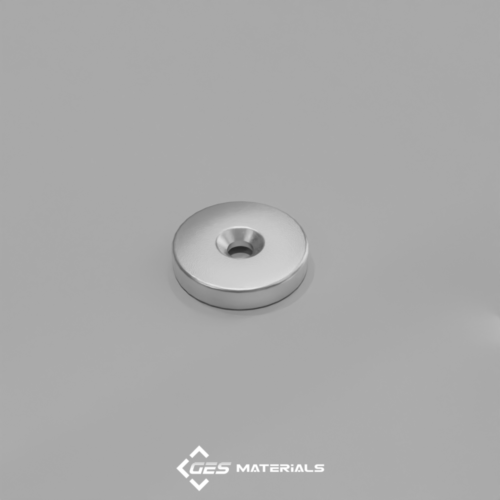

1 1/4 x 1/4 Inch Countersunk Ring Magnet (#8 screw) | RX434DCS N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 1/4 x 1/4 Inch Countersunk Ring Magnet (#8 screw) | RX434DCS N42 Magnets

Additional information

Description:

Dimensions: 1 1/4″ od x 0.194″ id x 0.349″ id x 1/4″ thick w/ hole to accept #8 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.28 oz. (36.1 g)
Pull Force, Case 1: 30.48 lbs
Pull Force, Case 2: 82.84 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RX434DCS is a larger and more powerful version of our smaller countersunk ring magnets, offering increased strength for demanding applications. Designed with double countersunk holes, this magnet is reversible, allowing for flexible mounting in either direction.

It’s an excellent choice for securely attaching objects to painted surfaces and is widely used in crafts, signage, displays, and a variety of other projects where a strong, reliable magnet is needed. Rugged, versatile, and built to perform.
