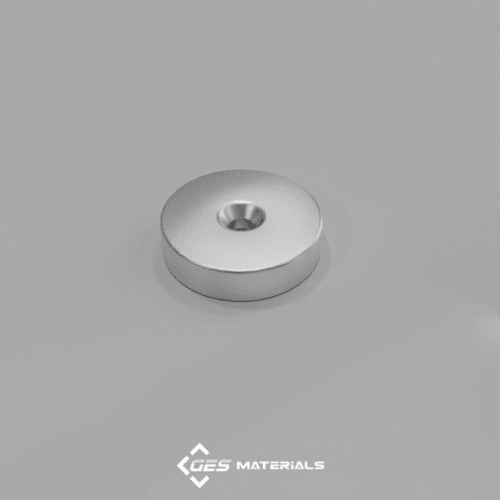

1 1/2 x 3/8 Inch Countersunk Ring Magnet (#10 screw) | RX836DCS N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ od x 0.221″ id x 0.402″ id x 3/8″ thick w/ hole to accept #10 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.77 oz. (78.7 g)
Pull Force, Case 1: 55.95 lbs
Pull Force, Case 2: 113.2 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RX836DCS resembles some of our smaller countersunk ring magnets, but in a much larger, more powerful size. Since it’s double countersunk, it is also reversible. This makes it perfect for attaching objects to painted surfaces, crafts, signage, displays, and more.
