1 1/2 x 1 1/2 Inch Diametric Ring Magnet | RX84X8DIA-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

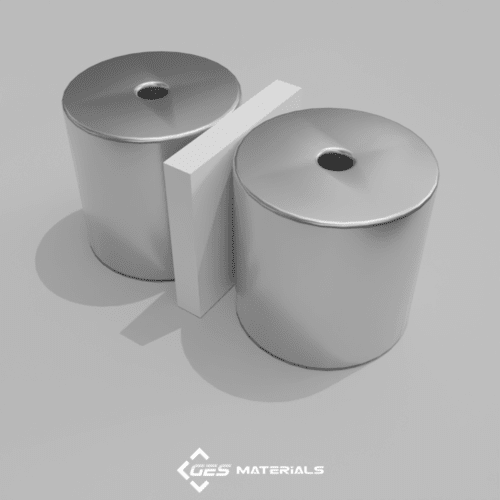

1 1/2 x 1 1/2 Inch Diametric Ring Magnet | RX84X8DIA-N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ od x 1/4″ id x 1 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 11.17 oz. (316.7 g)
Pull Force, Case 1: 72.93 lbs
Pull Force, Case 2: 93.12 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RX84X8DIA is an incredibly powerful diametrically magnetized ring magnet, designed for applications requiring extreme holding force. Due to their strength and unique magnetization, these magnets should only be handled by experienced users. Diametrical magnetization adds a level of complexity—careful planning and handling are essential.

As with any large neodymium magnet, improper use can result in serious injury. These magnets can pinch, crush, or cause other physical harm if not handled with the utmost caution. THESE ARE DANGEROUS.

You must read and understand our Neodymium Magnet Safety Page and agree to our Terms and Conditions before purchasing.
