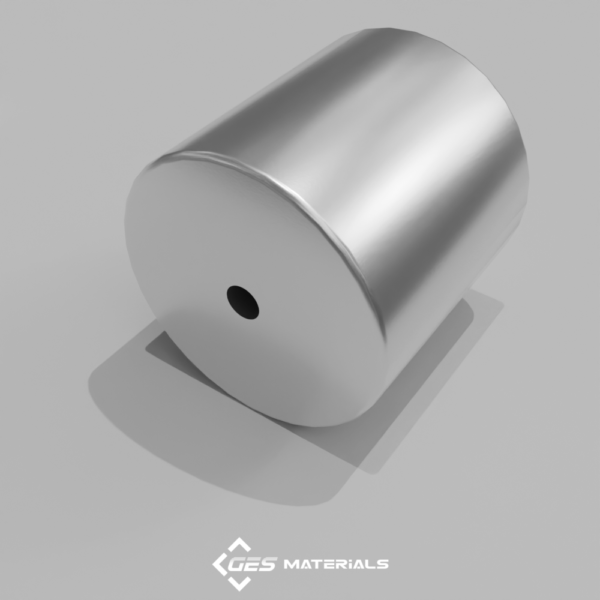

2 x 2 Inch Diametric Ring Magnet | RY04Y0DIA-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 2″ od x 1/4″ id x 2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 26.84 oz. (760.9 g)
Pull Force, Case 1: 133.7 lbs
Pull Force, Case 2: 152.6 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RY04Y0DIA is a powerful, diametrically magnetized ring magnet designed for extreme holding applications. Due to its strong magnetic force, it should only be handled by experienced users. Use caution, as it can cause serious injury if mishandled. THESE ARE DANGEROUS!

Also available axially magnetized as part number RY04Y0.
