1/4 “ dia Sphere Magnets | S4B Magnet

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/4″ diameter
  • Tolerances: ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Black Ni (Black Nickel)
  • Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
  • Weight: 0.035 oz (1.01 g)
  • Pull Force, Case 1: 1.63 lbs
  • Pull Force, Case 2: 1.96 lbs
  • Surface Field: 8815 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

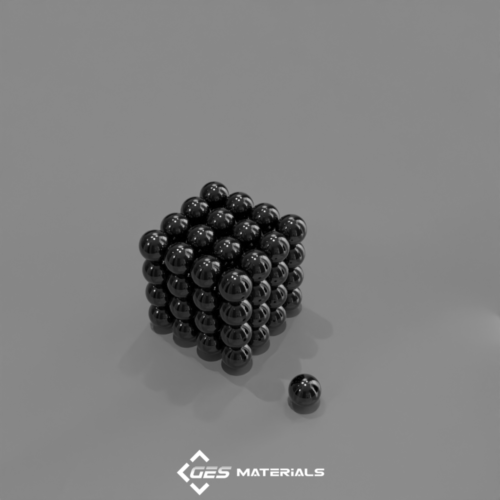

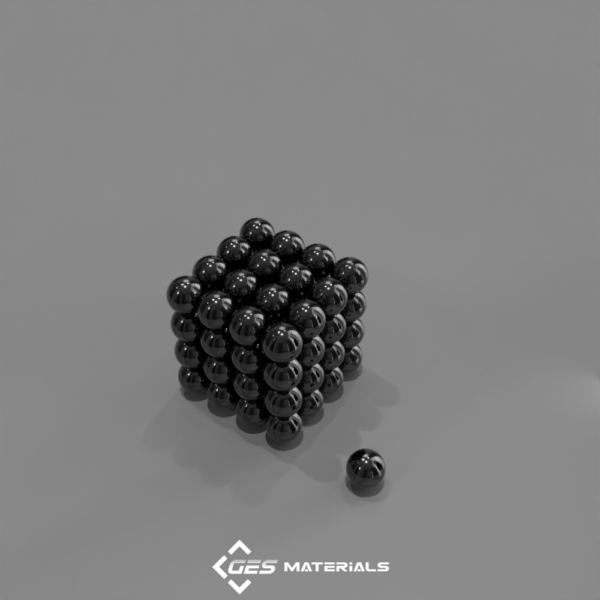

These magnetic spheres are identical in size and performance to our standard S4 spheres, with the only difference being the black nickel plating. This finish gives them a sleek, dark charcoal appearance instead of the typical shiny silver look of regular nickel plating. They can be used on their own or combined with standard silver S4 spheres and other shapes to create visually dynamic arrangements.
