1/4 inch dia Sphere Magnets | S4G Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 inch dia Sphere Magnets | S4G Magnet

Categories Neodymium Magnets, Neodymium Sphere Magnets

Additional information

Description:

Dimensions: 1/4″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni-Au (Gold)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.035 oz (1.01 g)
Pull Force, Case 1: 1.63 lbs
Pull Force, Case 2: 1.96 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

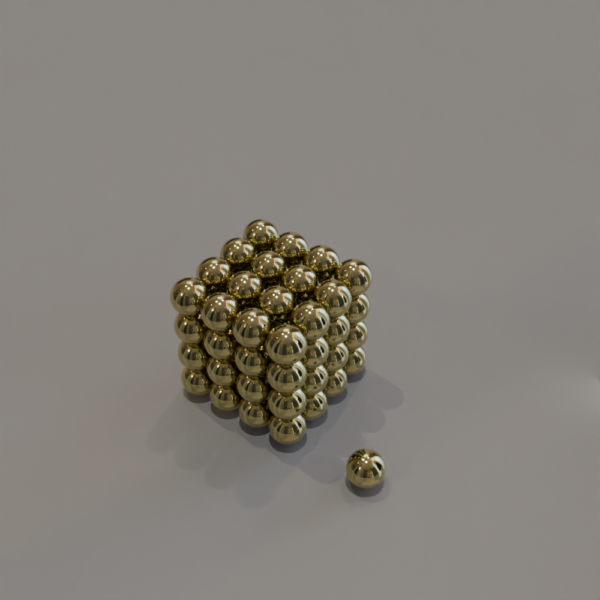

These gold-plated spheres are identical in size and strength to our standard S4 (silver) and S4B (black) spheres—the only difference is the premium gold finish. They can be used on their own for a striking look or mixed and matched with S4, S4B, and other shapes to create unique combinations and designs.
