5/16 ” dia Sphere Magnets | S5 Magnet

Categories Neodymium Magnets, Neodymium Sphere Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 5/16″ diameter
Tolerances: ±0.004″
Dimensions: 5/16″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.069 oz (1.96 g)
Pull Force, Case 1: 2.52 lbs
Pull Force, Case 2: 3.04 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

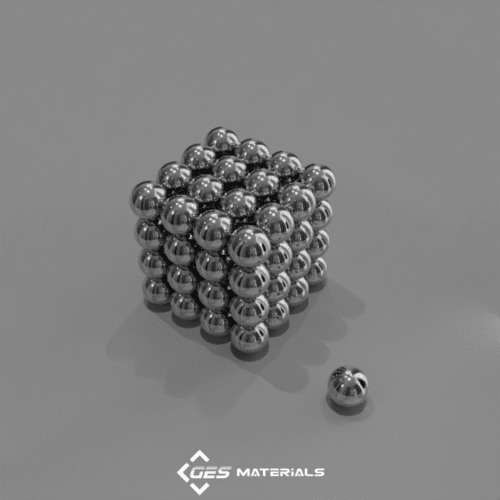

These sphere magnets are among our most popular and well-loved options. Each magnet is perfectly spherical with a diameter of 5/16″. The magnetic poles—north and south—are positioned on opposite sides of the sphere, making them ideal for interactive applications, educational use, or creative assemblies.
