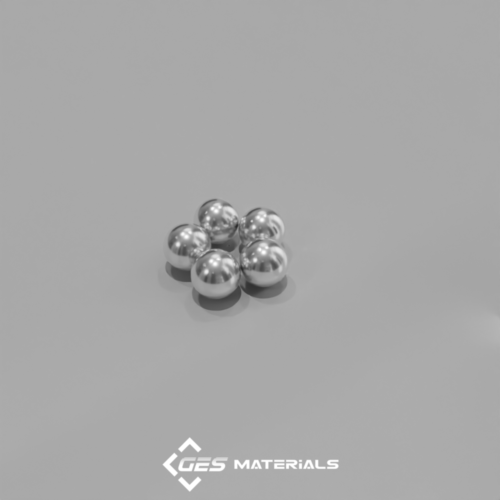

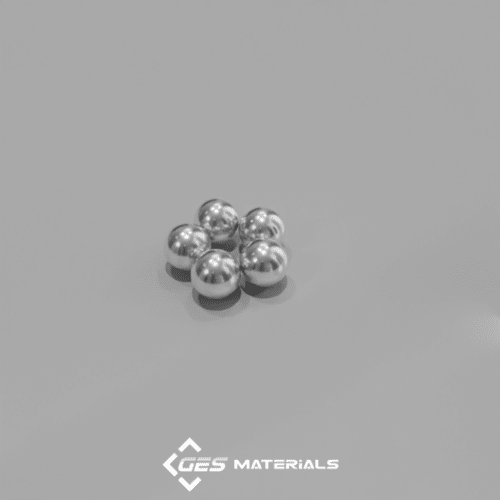

7/16 Inch Sphere Magnet | S7 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

7/16 Inch Sphere Magnet | S7 N42 Magnets

Categories Neodymium Magnets, Neodymium Sphere Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 7/16″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.190 oz (5.4 g)
Pull Force, Case 1: 4.97 lbs
Pull Force, Case 2: 5.99 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These 7/16″ diameter sphere magnets are significantly stronger than our 1/4″ spheres and can pinch if not handled carefully.
