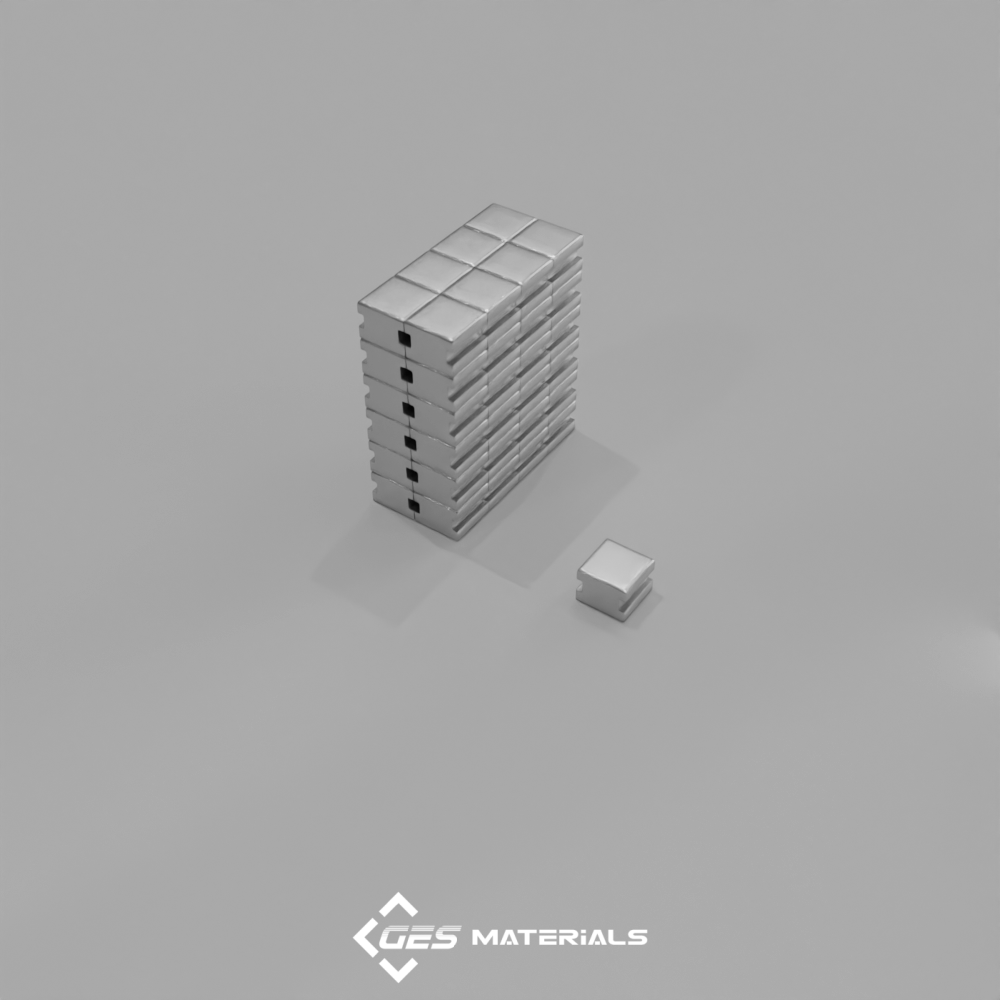

1/4 x 1/4 x 3/16 Inch Stepped Block Magnet | SB443-IN N42 Magnets

Additional information

Description:

Dimensions: 1/4″ length x 1/4″ width x 3/16″ thick , with step IN
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.047 oz. (1.32 g)
Pull Force, Case 1: 3.42 lbs
Pull Force, Case 2: 4.72 lbs
Surface Field: 5409 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped block magnets combine the best holding power with inset steps on two sides. This often asked-for feature enables many methods of securing the magnet in your assembly. This magnet is the answer for those trying to avoid the use of adhesives.
