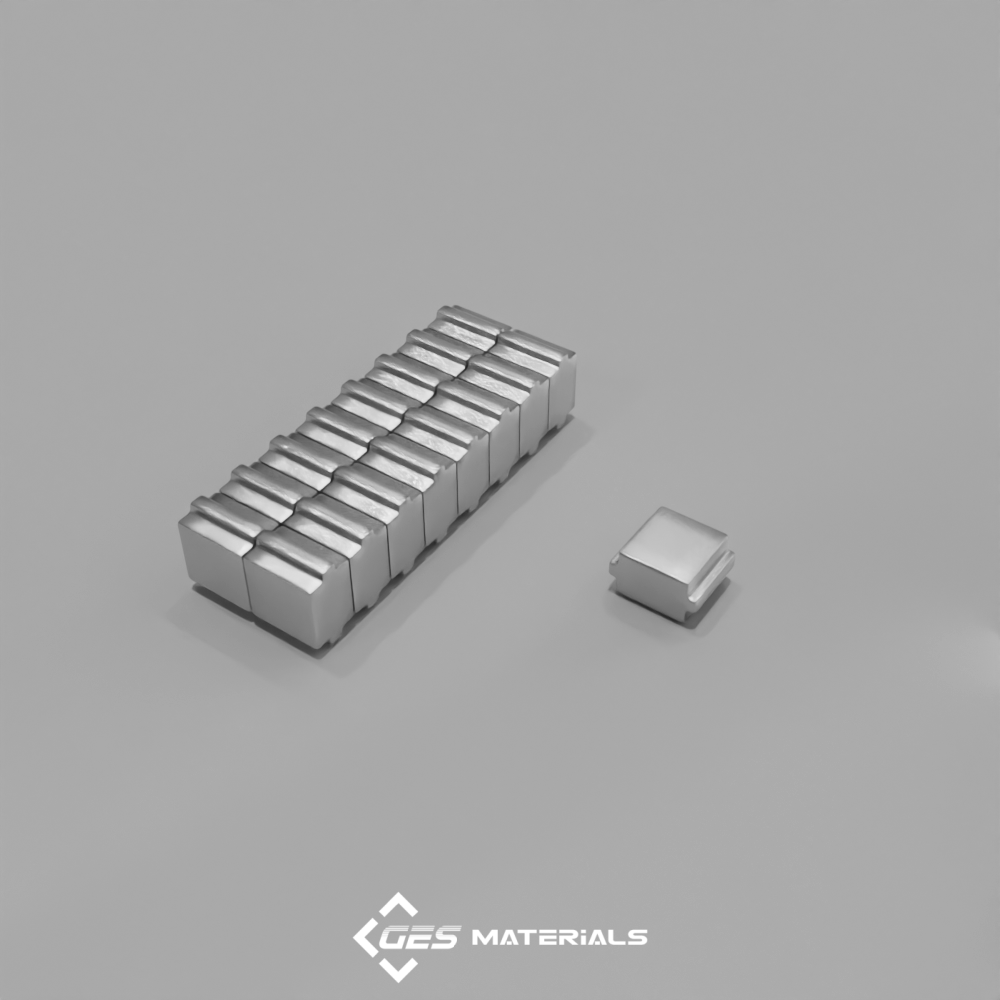

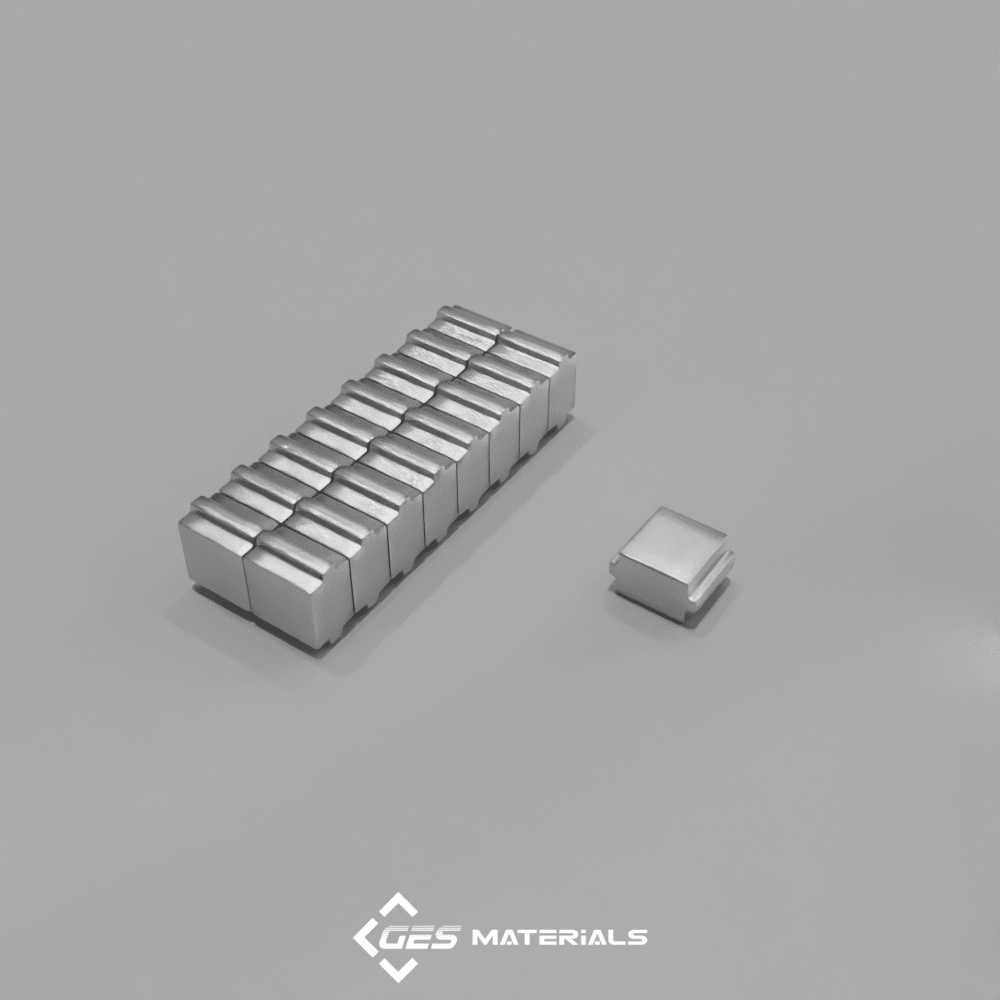

3/8 x 3/8 x 1/4 Inch Stepped Block Magnet | SB664-OUT N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 x 1/4 Inch Stepped Block Magnet | SB664-OUT N42 Magnets

Additional information

Description:

Dimensions: 3/8″ length x 3/8″ width x 1/4″ thick , with step OUT
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.167 oz. (4.73 g)
Pull Force, Case 1: 9.20 lbs
Pull Force, Case 2: 12.94 lbs
Surface Field: 4838 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped block magnets combine great holding power with outset steps on two sides. This often asked-for feature enables many methods of securing the magnet in your assembly. This magnet is the answer for those trying to avoid the use of adhesives.
