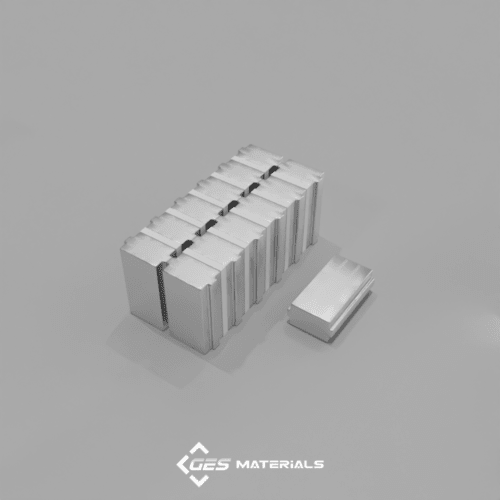

3/8 x 3/4 x 1/4 Inch Stepped Block Magnet | SB6C4-OUT N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/4 x 1/4 Inch Stepped Block Magnet | SB6C4-OUT N42 Magnets

Additional information

Description:

Dimensions: 3/8″ length x 3/4″ width x 1/4″ thick , with step OUT
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.334 oz. (9.46 g)
Pull Force, Case 1: 15.71 lbs
Pull Force, Case 2: 26.51 lbs
Surface Field: 4216 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped block magnets combine strong holding power with outset steps on two sides. This highly requested feature allows for versatile mounting options, making it easy to securely fasten the magnet in your assembly. Ideal for applications where adhesives are to be avoided, providing a reliable and flexible solution.
