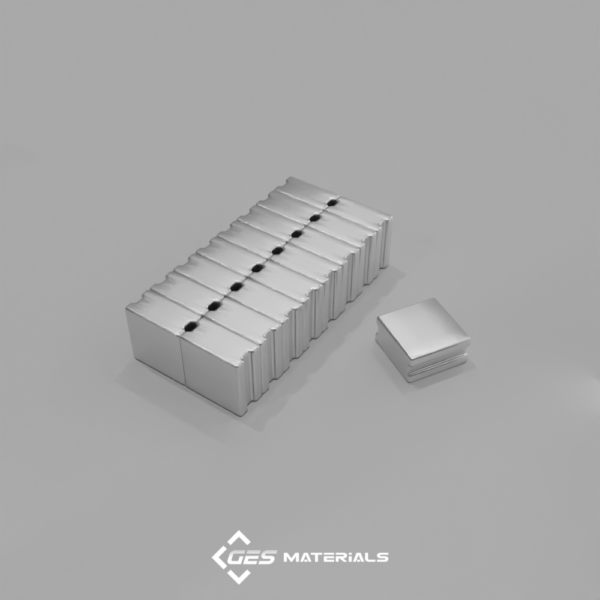

1/2 x 1/2 x 1/4 Inch Stepped Block Magnet | SB884-IN N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/2 x 1/4 Inch Stepped Block Magnet | SB884-IN N42 Magnets

Additional information

Description:

Dimensions: 1/2″ length x 1/2″ width x 1/4″ thick , with step IN
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.252 oz. (7.14 g)
Pull Force, Case 1: 12.22 lbs
Pull Force, Case 2: 19.93 lbs
Surface Field: 4594 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped block magnets offer excellent holding power combined with inset steps on two sides. This popular design feature allows for multiple secure mounting options in your assembly. Ideal for applications where adhesives are undesirable, providing a dependable and versatile fastening solution.
