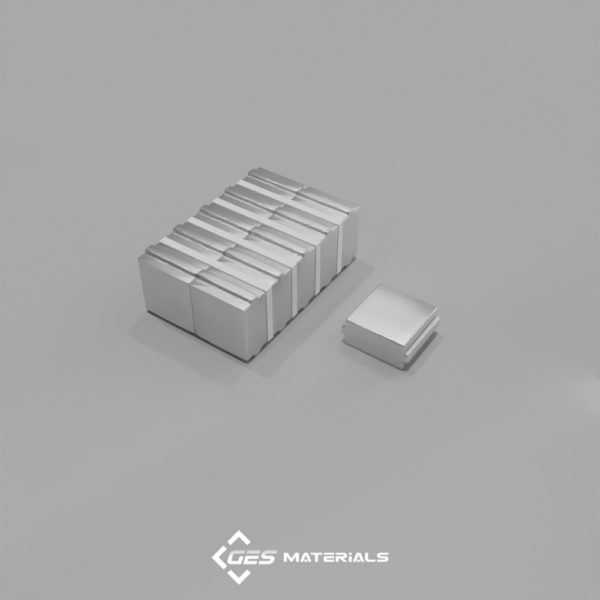

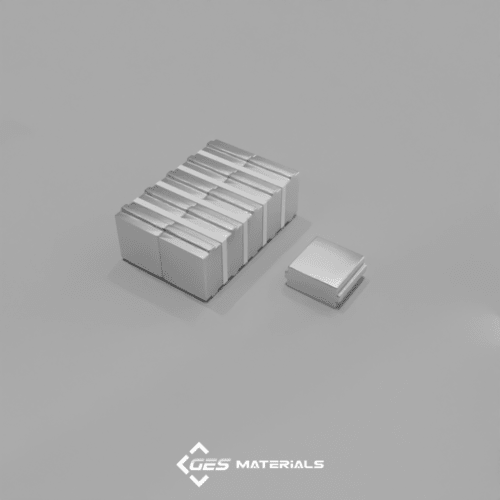

1/2 x 1/2 x 1/4 Inch Stepped Block Magnet | SB884-OUT N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/2 x 1/4 Inch Stepped Block Magnet | SB884-OUT N42 Magnets

Additional information

Description:

Dimensions: 1/2″ length x 1/2″ width x 1/4″ thick , with step OUT
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.290 oz. (8.22 g)
Pull Force, Case 1: 14.08 lbs
Pull Force, Case 2: 22.95 lbs
Surface Field: 4206 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped block magnets feature strong holding power along with outset steps on two sides. This sought-after design allows for versatile and secure mounting options in your assembly. Perfect for applications where adhesives are to be avoided, offering a reliable and flexible fastening solution.
