3/4 Inch Sphere Magnet | SC N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

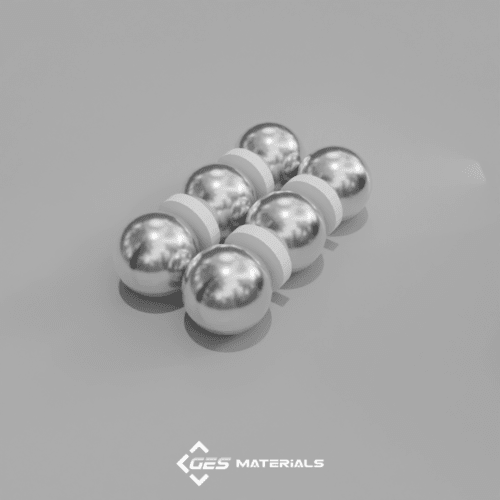

3/4 Inch Sphere Magnet | SC N42 Magnets

Additional information

Description:

Dimensions: 3/4″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.958 oz (27.2 g)
Pull Force, Case 1: 14.74 lbs
Pull Force, Case 2: 17.41 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These 3/4″ sphere magnets are incredibly powerful. Unlike discs or blocks, their magnetic field is more concentrated at the poles, making them especially effective in certain applications.
