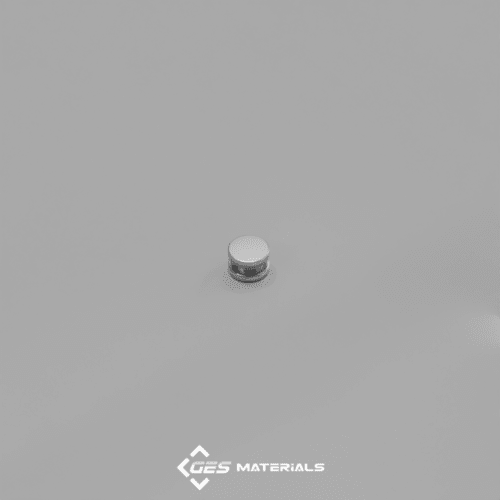

3/8 x 1/4 Inch Stepped Disc Magnet | SD64-IN-N42 Magnets

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/8″ dia. x 1/4″ thick with step IN
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.121 oz. (3.43 g)
  • Pull Force, Case 1: 6.08 lbs
  • Pull Force, Case 2: 8.06 lbs
  • Surface Field: 5110 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These stepped disc magnets combine excellent holding power with an inset area around the circumference. This frequently requested feature enables various methods of securing the magnet in your assembly. This magnet is the solution for those trying to avoid using adhesives.
