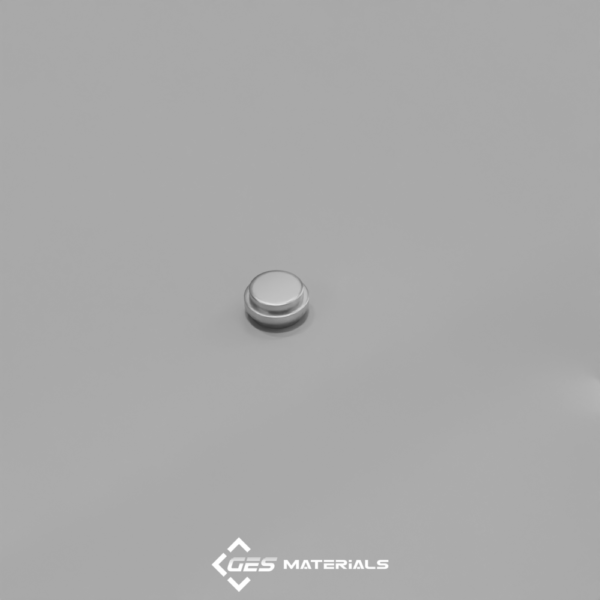

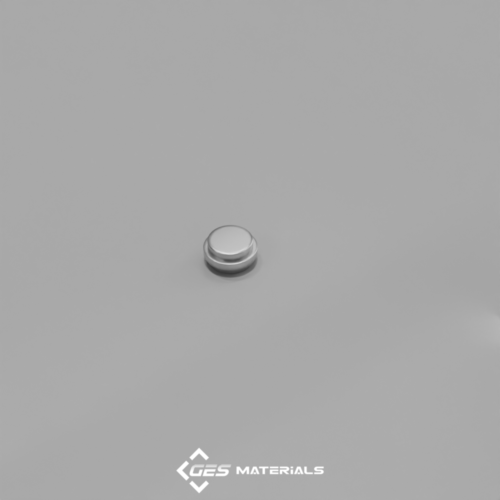

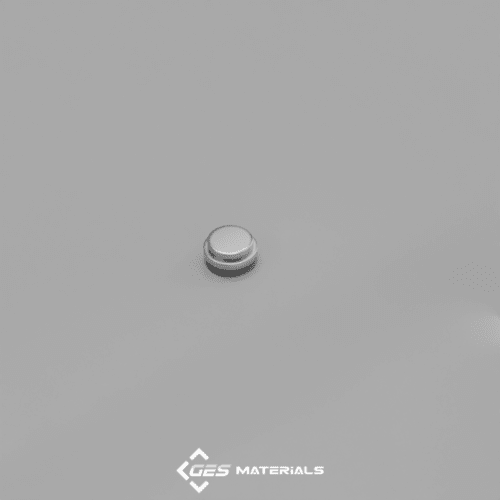

1/2 x 1/4 Inch Stepped Disc Magnet | SD84-OUT N42 Magnets

Categories Neodymium Magnets, Neodymium Stepped Magnets, Permanent Magnets, Stepped Disc Magnet

Additional information

Description:

Dimensions: 1/2″ dia. x 1/4″ thick with step OUT
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.219oz. (6.21 g)
Pull Force, Case 1: 11.98 lbs
Pull Force, Case 2: 17.83 lbs
Surface Field: 4393 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped disc magnets combine significant holding power with an extended area around the circumference. This frequently requested feature allows for various methods of securing the magnet in your assembly. This magnet serves as a solution for those looking to avoid the use of adhesives.
