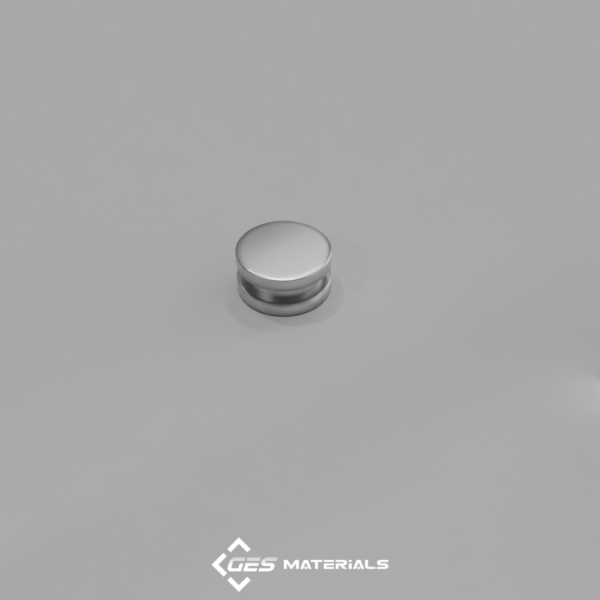

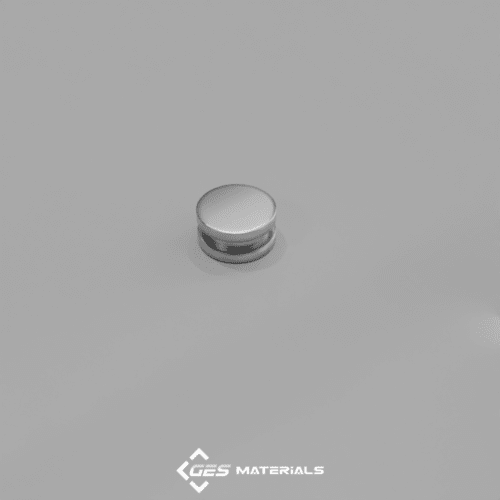

3/4 x 3/8 Inch Stepped Disc Magnet | SDC6-IN N42 Magnets

Categories Neodymium Magnets, Neodymium Stepped Magnets, Permanent Magnets, Stepped Disc Magnet

Additional information

Description:

Dimensions: 3/4″ dia. x 3/8″ thick with step IN
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.742 oz. (21.03 g)
Pull Force, Case 1: 21.56 lbs
Pull Force, Case 2: 32.60 lbs
Surface Field: 4586 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped disc magnets combine the best holding power with an inset area around the circumference. This often asked-for feature enables many methods of securing the magnet in your assembly. This magnet is the answer for those trying to avoid the use of adhesives.
