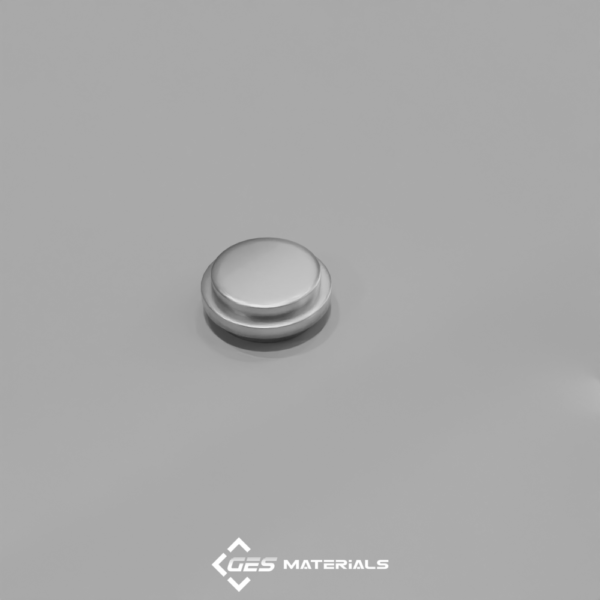

1 x 3/8 Inch Stepped Disc Magnet | SDX06-OUT N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 3/8 Inch Stepped Disc Magnet | SDX06-OUT N42 Magnets

Categories Neodymium Magnets, Neodymium Stepped Magnets, Permanent Magnets, Stepped Disc Magnet

Additional information

Description:

Dimensions: 1″ dia. x 3/8″ thick with step OUT
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.41 oz. (40.0 g)
Pull Force, Case 1: 40.98 lbs
Pull Force, Case 2: 65.09 lbs
Surface Field: 3720 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These stepped disc magnets combine great holding power with an outset area around the circumference. This often asked-for feature enables many methods of securing the magnet in your assembly. This magnet is the answer for those trying to avoid the use of adhesives.
