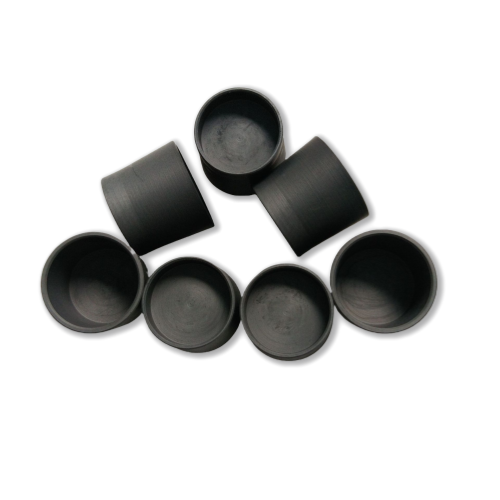

Small Silicon Nitride Crucible

Additional information

Catalog No.

SiN5621s

Material

Si3N4

Maximum Operating Temperature

1300~1600 ℃

Density

3.15-3.25 g/cm3

Size

Customized

Reddit
X
LinkedIn
WhatsApp

Description:

The small silicon nitride (Si₃N₄) ceramic crucible, also known as a laboratory melting crucible, is specifically engineered for laboratory and high-temperature industrial applications, including metal melting and chemical processing. Thanks to the exceptional physical and thermal properties of silicon nitride, this crucible is an ideal choice for handling high-temperature materials in demanding environments.

  • High-Temperature Performance
    Constructed from high-purity silicon nitride, the crucible withstands temperatures up to 1200°C, maintaining thermal stability and structural integrity even under extreme conditions.
  • Excellent Corrosion Resistance
    Si₃N₄ offers outstanding chemical resistance to a wide range of corrosive substances, making it suitable for handling both acidic and alkaline environments during complex chemical reactions.
  • Thermal Shock Resistance
    With a thermal shock resistance (ΔT) of up to 500°C, this crucible can endure rapid temperature changes without cracking or structural failure, ensuring operational safety and longevity.
  • Precision Structural Design
    Customizable design options such as center holes and other structural features are available to meet specific assembly or process requirements, offering enhanced functionality and experimental flexibility.
  • Superior Mechanical Strength
    Engineered for durability, the crucible boasts a flexural strength of 600 MPa and a compressive strength of 2500 MPa, ensuring it remains stable and functional under physical stress.

Applications:

  • Laboratory Research
    Widely used in chemistry and physics laboratories at universities and research institutes for high-temperature chemical analysis and materials science experiments.
  • Industrial Melting
    Employed in the metalworking and ceramics industries for melting metals and other high-melting-point materials.
  • High-Temperature Furnace Use
    Serves as a crucible in high-temperature furnaces for the processing of glass, special alloys, and other heat-resistant materials.
  • Chemical Processing Equipment
    Acts as a reaction vessel in chemical production processes that require extreme temperatures and chemical stability, ensuring safety and performance under aggressive conditions.
