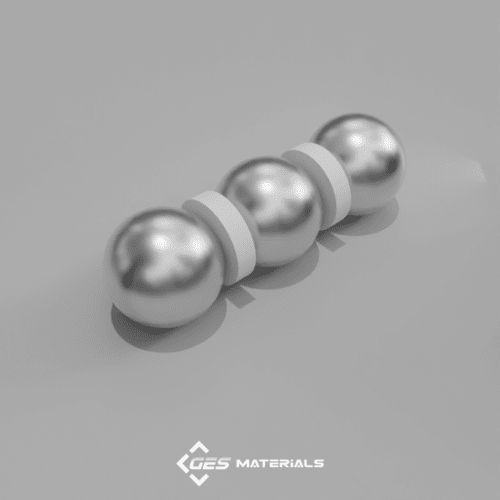

1 Inch Sphere Magnet | SX0 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 Inch Sphere Magnet | SX0 N42 Magnets

Categories Neodymium Sphere Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 1″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 2.27 oz (64.4 g)
Pull Force, Case 1: 26.37 lbs
Pull Force, Case 2: 30.68 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These 1″ sphere magnets are incredibly powerful. Their magnetic fields are more concentrated at the poles compared to disc or block magnets. Please use extreme caution when handling these large spheres can attract with great force and may cause injury if mishandled.
