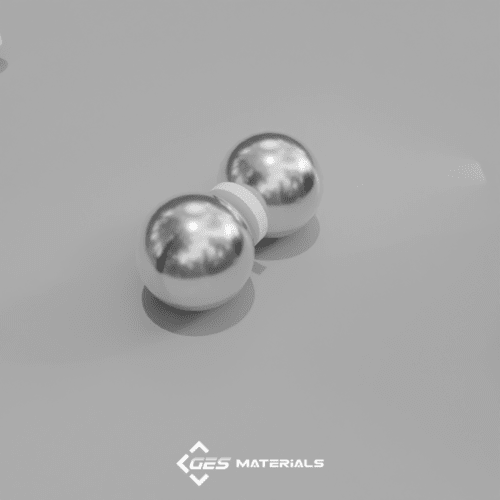

1 1/2 Inch Sphere Magnet | SX8 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 1/2 Inch Sphere Magnet | SX8 N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ diameter
Tolerances: ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 7.66 oz (217 g)
Pull Force, Case 1: 58.80 lbs
Pull Force, Case 2: 67.08 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These 1 1/2″ sphere magnets are extremely powerful. Compared to disc or block magnets, sphere magnets have more concentrated magnetic fields at their poles. Use extreme caution—these large spheres are exceptionally strong and can be dangerous if not handled properly.
