Tungsten Bar/Rod
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

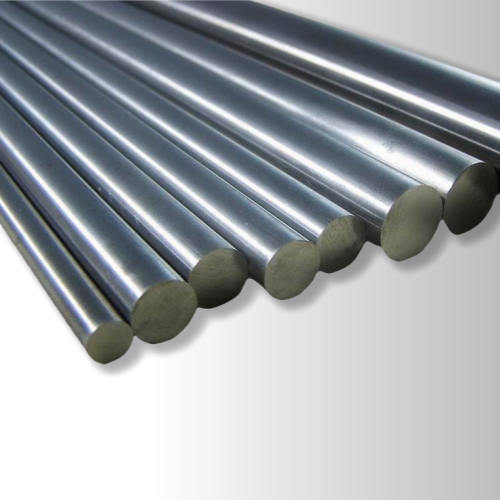

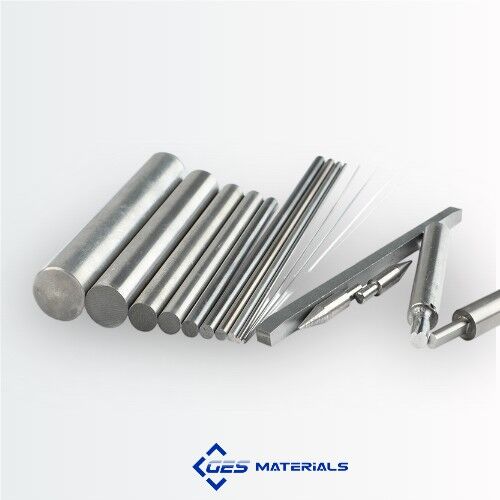

Tungsten Bar/Rod

Categories ,

Additional information

Item Number

GES-W074R
Density

Sintered tungsten rod: ≥18.3g/cc
Forged tungsten rod: ≥18.5g/cc
Diameter

2-30mm
Surface treatment

2.0mm to 30mm, Ground surface, >30mm, Smooth forged surface
Production Process

Pressing-sintering-forging-surface treatment
Facebook
Twitter
LinkedIn

Description:

Tungsten bars and rods are high-density, cylindrical refractory metal products manufactured through powder metallurgy and precision machining processes. Available in diameters ranging from 1mm to 150mm with standard lengths up to 600mm (custom dimensions available), these products deliver exceptional performance in extreme environments.

  • Unmatched Melting Point: 3,422°C (6,192°F) – highest of all pure metals
  • Exceptional Density: 19.25 g/cm³ (superior to lead for radiation shielding)
  • High Temperature Strength: Maintains structural integrity above 2,000°C
  • Low Thermal Expansion: Minimizes dimensional changes under thermal stress
  • Excellent Corrosion Resistance: Resists most acids and molten metals

Applications:

 High-Temperature Tooling

  • Resistance welding electrodes
  • EDM (electrical discharge machining) electrodes
  • Hot-work tooling for glass and metal forming

Electronics & Semiconductor

  • High-power electronic heat sinks
  • Vacuum tube components
  • Semiconductor diffusion barriers

Aerospace & Defense

  • Rocket engine components
  • Gyroscope rotors
  • Armor-piercing penetrators

Medical & Energy

  • Radiation shielding collimators
  • Linear accelerator components
  • Nuclear reactor control rods

Industrial Manufacturing

  • Thermocouple wires (W-Re alloys)
  • Furnace construction elements
  • Plasma torch electrodes
