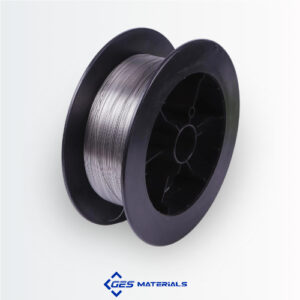

Tungsten Wire

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Categories Refractory Metals, Tungsten

Additional information

Item Number	GES-W074W
Purity	99.95%
Diameter	0.1-1.5 mm
Production Process	Isotactic pressing – Intermediate frequency sintering – Machining – Drawing
Surface treatment	Cleaned

Description:

Tungsten wire is a high-performance refractory metal filament manufactured through precision drawing processes, offering the highest melting point (3,422°C) of all pure metals. Available in diameters from 5μm to 3.0mm, it is engineered for extreme thermal and electrical applications.

Ultra-High Temperature Resistance: Operates effectively up to 3,000°C
Exceptional Tensile Strength: Maintains integrity under mechanical stress
Low Vapor Pressure: Ideal for vacuum environments
Excellent Creep Resistance: Minimal deformation at elevated temperatures
High Electrical Conductivity: Superior to most refractory metals

Applications:

Lighting & Electronics

• Incandescent/Halogen Lamps: Filament wire
• Electron Microscopy: Filaments, heating elements
• Semiconductor Manufacturing: Probe needles, bonding wire

High-Temperature Systems

• Vacuum Furnaces: Heating elements (up to 2,800°C)
• Thermocouples: W3%Re/W25%Re thermoelements
• Industrial Sensors: High-temp measurement devices

Medical & Analytical

• X-ray Tubes: Cathode filaments
• Mass Spectrometry: Ion source components
• Radiotherapy: Collimator components

Additive Manufacturing

• EBM/SLM 3D Printing: Support structures
• Laser Cutting: Guide wires

Specialty Applications

• Spacecraft Components: Antenna wires
• Defense Systems: Guidance components
• Jewelry Manufacturing: High-precision tools
