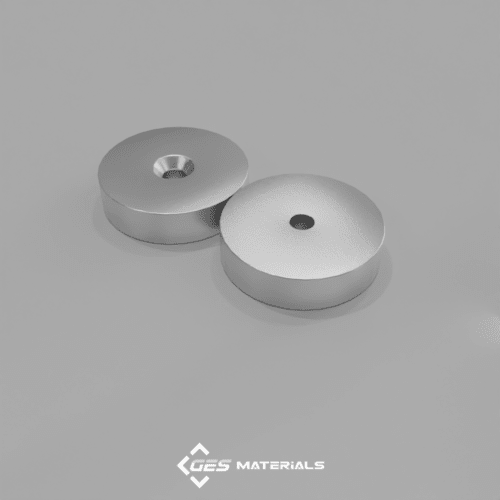

1 1/2 x 3/8 Inch Countersunk Ring Magnet (#10 screw) | ZRX836CS-N N42 Magnets

Categories , , ,
1 1/2 x 3/8 Inch Countersunk Ring Magnet (#10 screw) | ZRX836CS-N N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 1 1/2″ od x 0.221″ id x 0.402″ id x 3/8″ thick w/ hole to accept #10 screw
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 2.77 oz. (78.7 g)
  • Pull Force, Case 1: 55.95 lbs
  • Pull Force, Case 2: 113.2 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The ZRX836CS-N is similar to our popular RX836DCS, but features a single countersunk hole on the north pole. As a surplus clearance item, it’s available at a discounted price while supplies last, making it a great value!

Ideal for attaching objects to painted or smooth surfaces, this magnet is perfect for use in crafts, signage, displays, and a wide range of general-purpose applications. Don’t miss out on this limited-time offer!
